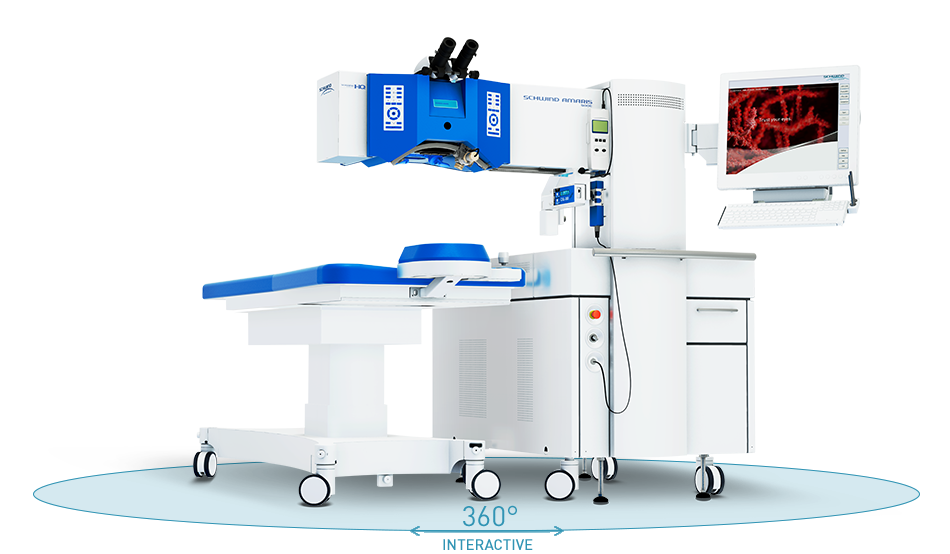

The efficient compact model
The SCHWIND AMARIS 500E combines efficiency and safety. Automatic Fluence Level Adjustment (AFLA) ensures an optimal balance between the total number of laser pulses and the energy delivered. The result is fast ablation with advanced smoothening of the cornea.
The laser system, with a 500 Hz repetition rate, is well complemented by a 5D eye tracker, which compensates for eye movements in five dimensions. The SCHWIND AMARIS 500E is trusted by eye surgeons, and the outstanding performance of this compact laser system is verified by numerous studies.4 – 6
- SmartSurfACE transepithelial photorefractive keratectomy with mitomycin C enhancement after small incision lenticule extraction. Gab-Alla AA. Eye Vis (Lond). 2021 Sep 1;8(1):28.
- Stability of corneal topography and aberrometry after hyperopic laser in situ keratomileusis with a 500Hz excimer laser platform: A 3-year follow-up study. Plaza-Puche AB, Vargas V, Yébana P, Arba-Mosquera S, Alio JL. Eur J Ophthalmol. 2020 Nov;30(6):1238-1245.
- Single-step transepithelial photorefractive keratectomy in high myopia: qualitative and quantitative visual functions. Adib-Moghaddam S, Soleyman-Jahi S, Adili-Aghdam F, Arba Mosquera S, Hoorshad N, Tofighi S. Int J Ophthalmol. 2017 Mar 18;10(3):445-452.

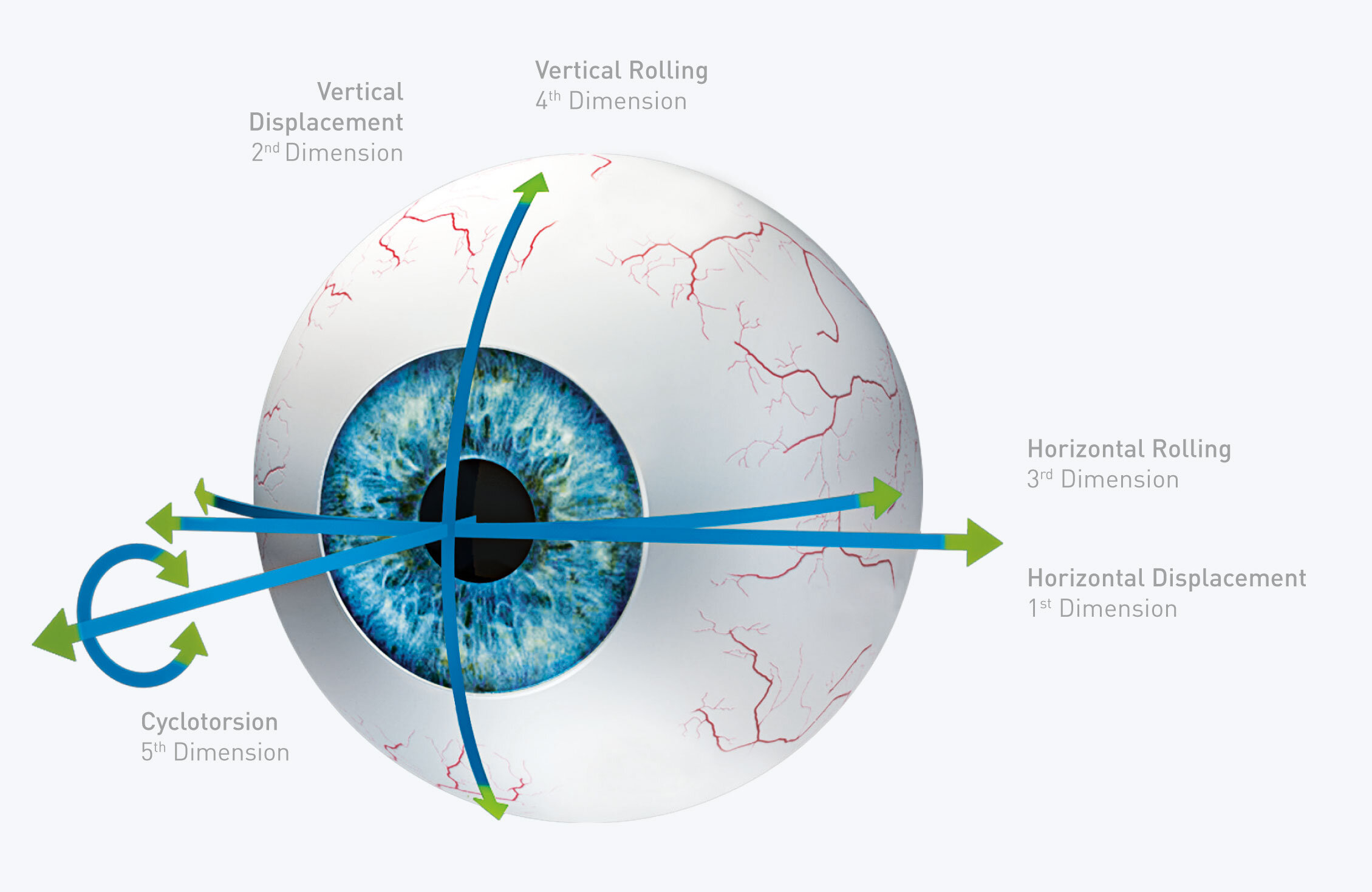

Precise: 5D eye tracking
Treatment success is enhanced by SCHWIND’s proprietary active 5D eye tracker which enables a unique level of precision. It is linked to the SCHWIND diagnostic systems and captures all eye motion (static as well as dynamic) during the procedure, for outstanding outcomes.
During the procedure, it precisely determines and compensates for the following eye movement dimensions:
- X-axis
- Y-axis
- Horizontal rolling
- Vertical rolling
- Eye rotation around the visual axis: static and dynamic cyclotorsion
Changes in pupil size are detected, and the laser is adjusted as necessary. In conjunction with the 5D eye tracker, this automatic function ensures correct centring throughout the procedure.
Touch-free treatment with SmartSurfACE
SmartSurfACE combines the benefits of touch-free TransPRK surface treatment with innovative SmartPulse Technology.8, 9
It works without touching the eye. There is no suction, no blade and no incision – vision is corrected through the top layers of the cornea with SCHWIND AMARIS technology, gently, touch-free, in a single step. The treatment with SmartSurfACE on regular corneas speeds up the healing process and yields good vision quality even in high myopic eyes.
The advantages over other surface treatment methods are obvious – the epithelium is removed more precisely, more uniformly and more easily than with manual or alcohol-assisted debridement.
SmartSurfACE is suitable for any laser candidate as well as patients with thin corneas, corneal pathologies or complex topographies.
- OneYear Visual and Refractive Outcomes of SmartPulse® Technology in Transepithelial Photorefractive Keratectomy for Myopic and Astigmatic Patients. Margarit DA, Stanca HT, Mocanu V, Munteanu M, Ferrari F, Marius S. J Clin Med. 2024 Oct 17;13(20):6182
- Trans advanced surface laser ablation (TransPRK) outcomes using SmartPulseTechnology. Aslanides IM, Kymionis GD. Cont Lens Anterior Eye. 2017 Feb;40(1):4246
Patient expectations are constantly increasing with regard to treatment methods and the results attainable in corneal surgery. If you can offer the shortest treatment times with perfect results, you have the upper hand. This is where the SCHWIND AMARIS family of laser systems sets a new standard, delivering greater safety and patient comfort.
Innovative and reliable
The SCHWIND AMARIS 1050RS is a major milestone in refractive corneal surgery, achieving a repetition rate of 1050 Hz, currently is one of the highest of any excimer laser in the market. This innovative excimer laser decreases the extremely short ablation time of the product family even further, to 1.3 seconds per dioptre2 – the ablation times achieved with the AMARIS 750S and AMARIS 500E are no less impressive. In practical terms this means shorter treatment times and minimised risk of corneal dehydration. Moreover, the length of time the patient has to fixate on the green light is significantly shorter.
- LASIK myopia without astigmatism, 12.5 mm vertex distance, 6 mm optical zone
The clinical results with the SCHWIND AMARIS laser
are the best I have ever seen.
Michiel Luger, MD, Bergman Clinics, Utrecht, Netherlands
Benefits at a glance
*LASIK, no astigmatism, 12.5 mm HSA, 6 mm optical zone
*LASIK, without astigmatism, 12.5 HSA, 6 mm optical zone
Plan individually for each situation
Comprehensive treatment planning with complete diagnostic data
Each treatment is different. That is why the entire AMARIS product family, with the modular SCHWIND CAM software, makes it possible for you to plan treatment individually for your patients across an exceptionally wide range of applications in corneal surgery. Whether corneal or ocular wavefront, pachymetry or epithelial data – all the required diagnostic information are incorporated into planning.
You can be sure that you will not leave out any detail important for the individual ablation.
SCHWIND CAM modules and the advantages for you
ORK-CAM
A one-of-a-kind intelligent planning tool for wide-ranging and tailor-made refractive laser treatment. Aspheric ablation profiles are employed for both aberration-free and customised treatments based on (total) corneal or ocular wavefront data.
PresbyMAX
This module is ideal for safe and efficient treatment of patients with emmetropia, myopia, hyperopia and astigmatism, whose accommodative response is limited. PresbyMAX is based on bi-aspheric ablation profiles.
PTK-CAM
This module supports you in performing therapeutic treatments. Superficial as well as deep corneal scars and corneal degenerations can be exactly localized and treated with a procedure in which the corneal tissue is ablated in either a circular, elliptical or an individualised shape. You can choose between a more superficial refraction-neutral or a deep ablation for performing laser keratoplasty.
Further advantages
Intelligent Thermal Effect Control (ITEC)
Higher safety through corneal temperature monitoring and laser pulse sorting for minimum heating, resulting in very gentle ablation
Automatic Fluence Level Adjustment (AFLA)
Balanced pulse number and energy for the perfect combination of fast treatment and high corneal smoothness
Integrated slit lamp
Immediate postoperative control down to the deep layers of the cornea
Corneal Collagen Crosslinking lamp
Lamp integrated in the workflow – Ready to use immediately, no additional adjustment necessary
Swivelling laser arm and powered swivelling bed
Comfort and convenience for patient, doctor and assistants
Treatment Assistant Manager (TAM)
Easier operation through controlled sequence of the operation steps light intensity, microscope magnification and fixation points; each step is individually adjustable
Automatic video record of treatment
Many teaching, reviewing and marketing possibilities
Automatic Fluence Level Adjustment
Ideal balance between the total number of laser pulses and energy delivered
AFLA - An ideal balance
With the Automatic Fluence Level Adjustment (AFLA), the SCHWIND AMARIS product family achieves desired level of corneal smoothening even at the highest ablation speed.* Researchers at SCHWIND have developed an algorithm that ensures an ideally balanced ratio between the total number of laser pulses and the energy delivered.
About 80 percent of the ablation is performed with a high fluence value. For the fine modelling – the remaining 20 percent – AFLA automatically switches to a lower fluence. The result is optimum smoothing of the cornea. Through the extremely small beam size and Super-Gaussian beam profile, you achieve desired ablation smoothness.
ITEC - Gentle even at the highest speeds
Intelligent Thermal Effect Control (ITEC) is the name of the thermal control process that prevents damage to the surrounding corneal tissue, even at the very high ablation speeds of the SCHWIND AMARIS product family. ITEC ensures that the laser pulses are distributed in a thermally optimised, dynamically adapted way, which gives the individual position on the cornea sufficient time to cool off. The following pulses can therefore approach an already cooled position faster. ITEC is better than the static processes. Studies using an infrared thermographic camera have proven that the corneal tissue only heats up minimally, even at high ablation speeds.*
The thermal control technology and ablation control with two fluence levels play a very important role, especially in biological terms: the less the biological interaction with the corneal tissue, the more reliably wounds can heal.
Prof. Jorge Alió, Vissum Medical Ophthalmologic Corporation, Alicante, Spanien
* High-speed recording of thermal load during laser trans-epithelial corneal refractive surgery using a 750 Hz ablation system. J Optom. De Ortueta D, Arba-Mosquera S, Magnago T. 2019 Apr – Jun.
